EMG Interfaces

The Surface EMG Sensors can connect to either a DataLITE, DataLOG, DataLINK or K800 Amplifier interface. These interfaces are general purpose data collection devices and may collect signals from a wide range of sensors simultaneously with EMG. This is ideal for correlation of muscle activity with other physiological parameters.

Using a DataLITE, DataLOG or DataLINK interface, stored data may be displayed and analyzed within the Biometrics software, or the raw data may be saved as an ASCII or a standard Sound Wave file for import into many other analysis programs such as Microsoft Excel or Cool Edit. The interfaces can also transfer data in real-time via the Microsoft Dynamic Link Library to any software capable of receiving data by the Microsoft Dynamic Link Library.

DataLITE PIONEER, ADVANCE, EXPLORE

DataLITE

DataLITE is a range of professional wearable tech systems allowing the user to collect physiological data from a wide range of sensors while the subject is free to move in almost any environment. Physiological parameters measured include muscle activity or EMG (electromyography), dynamic joint range of motion, muscle strength and acceleration.

DataLITE provides a selection of three interfaces (PIONEER, ADVANCE, EXPLORE). Each is capable of recording up to 24 analogue and 12 digital channels of data. If more is required, two or more interfaces can operate in the same environment.


DataLOG

DataLOG

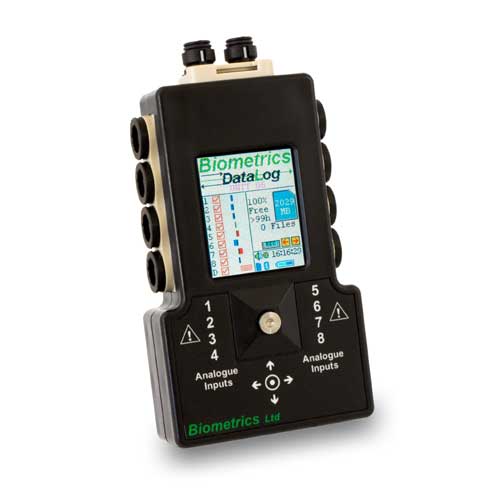

The DataLOG offers the user the ability to collect EMG and other data reliably from up to 24 channels simultaneously in a truly portable configuration. When more than 8 channels are required 2 or 3 DataLOGs may be synchronized using a single wireless Bluetooth® connection providing options for 16 and 24 analog channels. The DataLOG Display and Analysis software allows for an unlimited number of real date and time stamped data files to be opened simultaneously, and the time axis may be tracked across all files allowing display and analysis for a large number of channels.

The capabilities offered to the user of EMG measurements using the DataLOG is unrivalled even by much more costly systems.


DataLINK

DataLINK

The DataLINK provides the user the ability to collect EMG and other data simultaneously with real time display and real time data analysis. The usefulness and simplicity of this accurate real time display and real time feedback is emphasized for both a research and educational setting.

The DataLINK Display and Analysis software allows for:

  • 8 analog channels and 5 digital channels to be displayed and analyzed real time
  • real time display and real time scaling in engineering or SI units
  • adjustable real time audible and visual alarms for any channel
  • 8, 16 or 24 analog channels
  • Readily synchronized with other systems
