Hand Grip Dynamometer

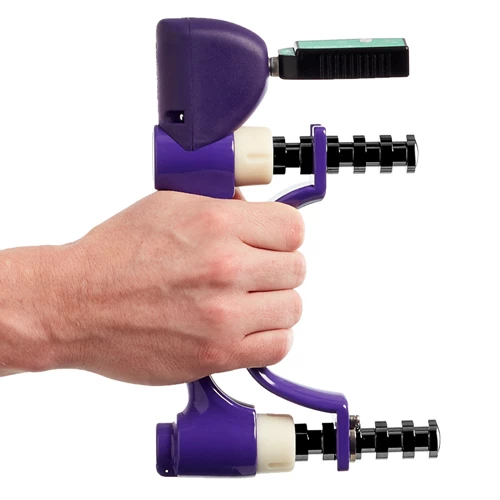

Biometrics Hand Grip Dynamometer for measuring grip strength, utilizes precision load-cell technology to increase the sensitivity and accuracy of measurement of even very low grip strength forces.

By using the industry standard Jamar design exterior researchers can compare with standardised normative data. Designed to work in compression with a rated load between 0 to 90kg (200lb). The Hand Grip Dynamometer (G200) is able to connect with any of the Biometrics Ltd wireless and wired interfaces, or other 3rd party instrumentation.

Specifications

Dimensions Standard Jamar configuration, calibrated and designed to work in compression only Mass 630g
Accuracy Better than 1% Rated Load Rated Load 0 to 90 Kg, or 0 to 200 Lb
Wireless Connection DataLITE Adaptor

DataLITE Adaptor

Adaptor Details

Dimensions 67 x 29 x 15 mm
Mass 34g
Enclosure Material Acetal CoPolymer
Sampling Rate User selectable of 2000, 1000, 500 or 200 samples per second
Bandwidth DC to 1kHz, +0dB/-3dB (reduced by sampling rates lower than 2000)
Battery Lithium Polymer rechargeable
Battery Life Fully charged battery life in excess of 12 hours with the Hand Grip Dynamometer
Wireless Connection A DataLITE Adaptor is needed to pair a Hand Grip Dynammometer with a DataLITE interface
Wireless Range Up to 30m
Wireless Transmission Data Loss Tolerant for 100 mS
Wired Connection Cable lengths available: 500mm, 1000mm, 1500mm
(custom lengths available on request)
Wireless Interface DataLITE PIONEER, ADVANCE, EXPLORE Wired Interface DataLOG, DataLINK, Amplifier or 3rd party

Biometrics Hand Grip Dynamometer is used extensively in the fields of ergonomics, sports science and medical research where measurements are commonly taken for a wide range of applications such as:

  • Grip Strength and Fatigue
  • Manual Muscle Testing
  • & Many More!
  • Bilateral Strength Testing
  • Sustained Grip Testing
