Product List for Data Acquisition

Interfaces

DataLITE

DataLITE is a range of professional wearable tech systems allowing the user to collect physiological data from a wide variety of sensors while the subject is free to move in almost any environment.

DataLOG

Developed to meet the needs of researchers for portable data collection and monitoring, DataLOG can be worn by the subject and incorporates a Micro SD card providing real-time data backup.

DataLINK

DataLINK is an on-line general purpose subject worn programmable data acquisition system allowing the user to collect both analogue and digital data from a range of sensors.

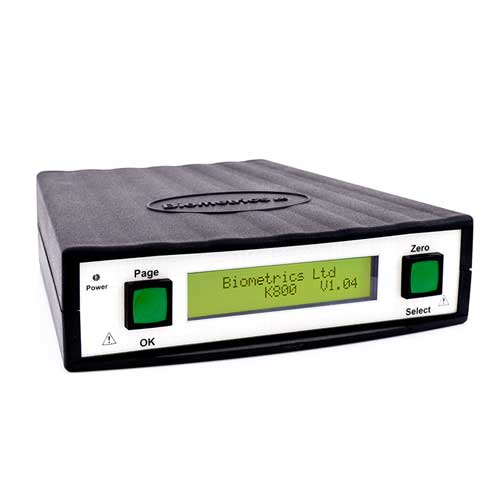

Amplifier

A microprocessor controlled general purpose amplifier system which for collecting signals from a variety of sensors in a format which may be readily connected to proprietary display and recording systems including A/D cards.

Sensors

Electronic Goniometers

Dynamic joint movements in multiple planes

Torsiometers

Rotations in one plane

EMG Sensors

Electromyography muscle activity

Accelerometers

Acceleration in 3-axis

ForcePlates

Vertical component of reaction force

Hand Held Dynamometer

Force applied during manual muscle testing

Hand Grip Dynamometer

Measure grip strength

Pinch Dynamometer

Measure pinch strength

Hand Held Trigger Switch

Start/stop recordings, synchonize data between systems and event marker

Load Cells

Measurements of load or force

Force Sensor

Measure force between any two surfaces

Contact Switches

Switches to indicate the point of contact

Analysis Software

Analysis Software - Real-time data analysis for EMG, Goniometer and associated sensor analysis

Consumables

Sensor Tape (T10) - Double sided hypoallergenic medical tape for attaching Goniometers, Torsiometers and Accelerometers.
EMG Sensor Tape (T350) - Die-cut double sided tapes for attaching Biometrics' surface EMG sensors SX230
EMG Electrodes (SEN3001) - High quality pliable EMG electrodes for use with Biometrics Ltd SX230FW EMG Amplifier
EMG Ground Strap (R306/506/606) - For use with the surface EMG sensor (SX230)

Leads, Cables and Accessories

Type	Length	Description
J-Series	500mm, 1000mm, 1500mm	Connection of Goniometers and Torsiometers to Biometrics' Interface
D1500	1500mm	Connection of general analog sensors to Biometrics' DataLOG, DataLINK or K800
Z1500	1500mm	Connection of general digital sensors to Biometrics' DataLOG, DataLINK or K800
H2000	2000mm	Connection of Biometrics' MyoMeter, Dynamometer, Pinchmeter or ForcePlates ( FP3 / FP4 ) to Biometrics' DataLOG, DataLINK or K800
TK-Series	500mm, 1000mm, 1500mm	Connection of FlexiForce® force sensors to Biometrics' DataLOG, DataLINK or K800

Type	Length	Description
R7000	7M	Connection of DataLINK Subject Unit to DataLINK Base Unit (included with DataLINK)
R6000	6M	Connection of K800 Subject Unit to K800 Base Unit (included with K800)
R2000i	2M	Connects Analog output of DataLINK or K800 Base Unit to 3rd party A to D board or data acquisition system (included as standard output with K800, optional extra for DataLINK)
R2000i-BNC	2M	Same as R2000i, fitted with 8 analogue BNC connectors for connection to a range of proprietary AD boards
R2000i-BNC-13	2M	Same as R2000i, fitted with 8 analogue and 5 digital BNC connectors for connection to a range of proprietary AD boards
SL100	N/A	Multiple DataLOG synchronization cable
SL200	N/A	16 Channel DataLINK synchronization cable
SL300	N/A	24 Channel DataLINK synchronization cable
AC1500S	1500mm	Stereo audio input cable
AC1500M	1500mm	Mono audio input cable

Type	Length	Description
IS2	500mm	Event Marker or Start/Stop (handheld) for DataLINK
IS3	1500mm	Event Marker (handheld)for DataLOG or K800
IS3LED	2000mm	Event Marker (handheld) for DataLOG or K800 with LED for optical synchronization
IS3PED	1500mm	Event Marker (foot switch) for DataLOG or K800 for DataLINK or K800
IS2LED	500mm	Event Marker (handheld) for DataLINK with LED for optical synchronization
IS4LED	1800mm	Start/Stop (handheld) for DataLOG with LED for optical synchronization
IS5LED	N/A	Record Output LED for video synchronization with DataLOG
IS6LED	N/A	Start/Stop / Event Marker (handheld) for DataLITE with LED for optical synchronization
SYNC1	1500mm	Allows DataLOG or DataLINK recording to be started/stopped by a TTL signal (5V pulse) sent from other hardware
SYNC1BNC	2000mm	As above, fitted with 1 BNC connector
SYNC5	1500mm	Allows DataLOG to start/stop other hardware by sending a TTL signal (5V pulse) (starting/stopping the DataLOG recording will start/stop the other hardware)

DataLITE Equipment

Type	Description
AD2	DataLITE Adaptor for connection of compatible Biometrics' sensors and DataLITE interface (PIONEER/ ADVANCE/ EXPLORE).
CA2	Charging Adaptor for battery charging of DataLITE sensors.
CC1	Charging cables for connection of DataLITE sensors to Charger Adaptor.
