DataLITE Wireless Sensors & Systems

Quick and easy to set-up, DataLITE wireless sensors provide superb quality of signal and gives the test subject total freedom of movement.

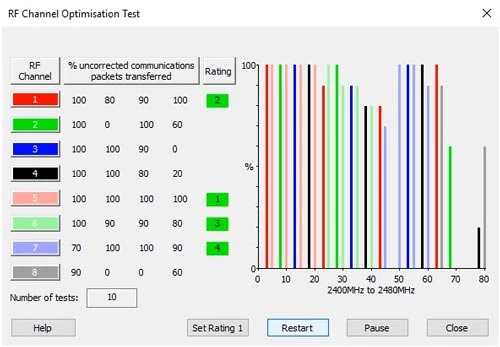

DataLITE wireless sensors requires a DataLITE interface (receiver) as the interface to the computer and allows for up to 16 wireless sensors to be connected on a single channel with a range of up to 40m.

Electrogoniometer

Using the exact same technology as our world standard wired electrogoniometers for dynamic joint movement measurements of the wrist, neck, elbow, ankle, hip, knee or back.

Torsiometer

Single-axis Torsiometers are designed for measurement of rotations in one plane e.g. forearm pronation/supination or neck axial rotation. If the Torsiometer is bent in planes X-X or Y-Y the output remains constant. All Torsiometers function in the same way, the difference being physical size.

Specifications
Transducer Type Strain gauge
Life1 600,000 cycles
Accuracy ± 2º measured over a range of ± 90º
Repeatability 1º measured over a range of 90º
Operating Temperature Range +10ºC to +40ºC
Temperature Zero Drift 0.15 degrees angle / ºC

1Life test results have been collected by cycling the sensors through movements that would happen during everyday use. For example, placing a sensor on an adult elbow and moving from the neutral position to maximum flexion and back to the neutral position, the unit will function for typically 600,000 cycles.


Surface EMG Sensor

DataLITE wireless surface EMG sensor provides superb quality of signal and ease of use. Small, lightweight with a bandwidth of 10-490 Hz, a built-in x1000 gain amplifier and user select-able sampling frequencies of 500, 1000 or 2000 Hz.

Specifications
Dimensions 42 x 24 x 14 mm Bandwidth 10 – 490Hz
Mass 17 g Number of Contacts 2
Contact Diameter 10 mm CMRR @ 60 Hz (dB) > 96 dB (typically 110 dB)
Contact Center Spacing 20 mm Full Scale +/- 6 mV Peak to Peak
Wireless Transmission Data Loss Tolerant for 120 mS Gain Standard unit x1000
Input Impedance > 10,000,000 M Ohms Accuracy +/- 0.5%
Sampling Rate User selectable of 500, 1000 or 2000 Hz per channel. Battery Life 8 hours
Noise ‹ 5µV Electrodes Integral dry reusable

Accelerometer

The Accelerometer is a precision 3-axis wireless sensor to measure both dynamic acceleration (i.e. vibration) and static acceleration (i.e. gravity). With a range of ± 16G (± 156.91 m/s2), the sensor transmits data directly to the computer where it can be easily synchronized with angular data, EMG or other physiological measurements.

Specifications
Dimensions 44 x 24 x 12 mm Number of Channels 3
Mass 15 g Designation X, Y, Z
Sampling Rate User selectable of 2000, 1000 and 500 Hz per channel. Output Range 0 to +/- 16 g
Bandwidth DC to 1 KHz (+0 dB/-3 dB) Wireless Transmission Data Loss Tolerant for 120 mS
Accuracy Timing ≤ 3m S Battery Life 12 hours

Hand Held Trigger Switch

The Hand Held Trigger Switch provides the user with a very accurate solution of synchronizing DataLITE with DataLOG or other 3rd party systems, such as a Vicon or Qualisys motion-analysis camera based system.

Contact Switches

Contact Switches plug into an Electrogoniometer and for example, by attaching the Electrogoniometer on the ankle, and the Contact Switches on the foot. It allows the researcher to co-ordinate the gait parameters with the dynamic movement of the ankle joint.


Adaptor

The DataLITE Adaptor is used with a DataLITE interface to communicate with the following devices: Dynamometer, MyoMeter, Pinchmeter, ForcePlates and Load Cells.

The various load/strength data collected may be synchronized real-time with other DataLITE sensors as part of a complete DataLITE system. Interfacing is effortless as all the precision calibration data is pre-programmed within the microprocessor controlled units.

The Biometrics Hand Dynamometer utilises precision load cell technology to increase the sensitivity and accuracy of measurement of even very low grip strength forces. By using the industry standard Jamar design, exterior researchers can compare with standardized normative data.

Dynamometer (G200)
Dimensions Standard Jamar configuration, calibrated and designed to work in compression only
Mass 540g
Accuracy Better than 1% Rated Load
Rated Load 0 to 90Kg, or 0 to 200lb

The unique electronic Pinchmeter has a low profile design that enables the researcher to accurately quantify pinch strength at closer to end range than any other device. The Biometrics Ltd Pinchmeter can also be connected to various 3rd party interfaces.

Pinchmeter (P200)
Dimensions Diameter 45 x 7mm
Mass 65g
Accuracy Better than 0.6% Rated Load
Rated Load 0 to 22.5Kg, or 0 to 50lb

The MyoMeter allows the user to quantify the force applied during Manual Muscle Testing, which is a procedure for the evaluation of the function and strength of individual muscles and muscle groups based on effective performance of a movement in relation to the forces of gravity and manual resistance.

MyoMeter (M550)
Dimensions 115 x 65 x 32 mm
Mass 250g
Accuracy Better than 1% Rated Load
Rated Load 0 to 50Kg (calibrated and designed to work in compression only)
Anvils 1 small, 1 large

The Biometrics Ltd range of ForcePlates are focused to the needs of the researcher providing high precision, versatility and ease of use.

ForcePlates (FP3, FP4)
  FP3 FP4
Dimensions 200 x 125 x 14 mm 250 x 125 x 22 mm
Mass 790g 1560g
Rated Load (RL) 0 to 100Kg 0 to 250Kg
Safe Overload 150% of RL (without change of parameters)
Accuracy ± 0.5%
Max. Supply Voltage (Vs) 10.0 Vdc
Sensitivity 15.0 mV/ RL at 10.0 Vs

Biometrics' precision Load Cells provide a complete, ready to go solution for measurements of load or force. Designed for general research applications including the fields of medicine, industrial ergonomics and sports science, the load cells make an ideal research and teaching tool when combined with the versatility of the Biometrics' DataLITE data acquisition systems.

In-Line Load Cell S-Beam Load Cell
Standard Ranges 0 to 0.5, 1, 2.5 KN
Safe Overload 50% of full scale with no loss in calibration
Mass In-Line - 120g, S-Beam - 350g
Excitation Voltage 15.0 Vdc maximum
Sensitivity 2.00 mV / V
Accuracy Better than 0.25% full scale
Thermal Sensitivity 0.0005% full range output / °C
Input Impedance 350 ohms
Output Impedance 350 ohms
Temperature Range Operating: -10°C to +50°C, Storage: -10°C to +50°C
Humidity Range Operating: 30% to 75%, Storage: 10% to 100%
Atmospheric Pressure Range Operating: 500 hPA to 1060 hPA, Storage: 500 hPA to 1060 hPA
