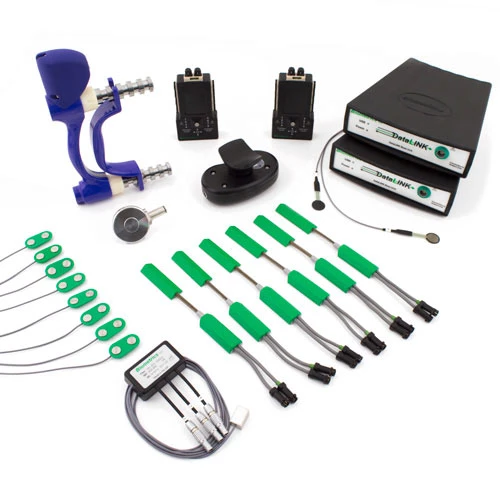

The DS3000 Deluxe Data Acquisition System is designed to provide maximum versatility in any setting.  This combination of sensors and instrumentation provides the advantage of true portability using the DataLOG, yet also real time display & analysis using the DataLINK.  Ideal for research facilities and educational establishments - multiple instruments allow concurrent data acquisition by multiple users.   The Biometrics Ltd Analysis Software reads files collected by both the DataLOG and/or the DataLINK

The DS3000 includes:

• DataLOG & DataLINK
• both with Management & Analysis software
• 8 active EMG sensors
• 9 goniometers
• (choice of standard sizes to accommodate
  upper and lower extremity)
• 1 torsiometer
• 2 event markers
• 4 contact switches

---

Portable Systems

The Portable Systems are comprehensive packages of sensors and instrumentation for static and dynamic measurements in a clinical setting, a research centre, or at any remote location such as an office or factory workplace.

The PS800 system comes with DataLOG, Management & Analysis Software, Angle Display Unit, 6 goniometers (choice of standard sizes to accommodate upper and lower extremity), and event marker.

The PS850 system is dedicated to EMG measurements and comes with DataLOG, Management & Analysis Software, 8 active EMG sensors and event marker.

The PS900 Portable System comes with DataLOG, Management & Analysis Software, Angle Display Unit, 8 active EMG sensors, 8 goniometers (choice of standard sizes to accommodate upper and lower extremity), 1 torsiometer, and event marker.

Laboratory Systems

The Laboratory Systems are powerful data acquisition tools. The usefulness of real time display of parameters such as joint angle, force and EMG is emphasized. The combination of DataLINK with the most often requested Biometrics’ sensors in either basic or enhanced configurations provides for a wide range of studies.

The LS800 comes with DataLINK, Management & Analysis Software, 6 goniometers (choice of sizes to accommodate upper and lower extremity), event marker and 4 contact switches.

The LS900 comes with DataLINK, Management & Analysis Software, 4 active EMG sensors, 6 goniometers (choice of sizes to accommodate upper and lower extremity), 1 Q150 torsiometer, event marker and 4 contact switches.

Clinical Systems

The Clinical Systems are basic packages of instrumentation and sensors for simple static joint angle readout.

The Clinical System comes complete with the Angle Display Unit ADU301, a twin axis goniometer (choice of size to accommodate upper or lower extremity) and two interconnect leads.

For dynamic collection of movement data, the R3000, Output Isolation Unit with mains power supply, connects the Clinical System to, for example, an A/D card in your computer for 2 channel simultaneous and continuous data collection for display and analysis.

(The A/D card is NOT supplied)
